LITTEL MULTI-SWITCH – ACCESSORIES
FAX: 773 792-2129
?
SWITCHES
307
* Please visit the product pages on our website for the most up-to-date product information

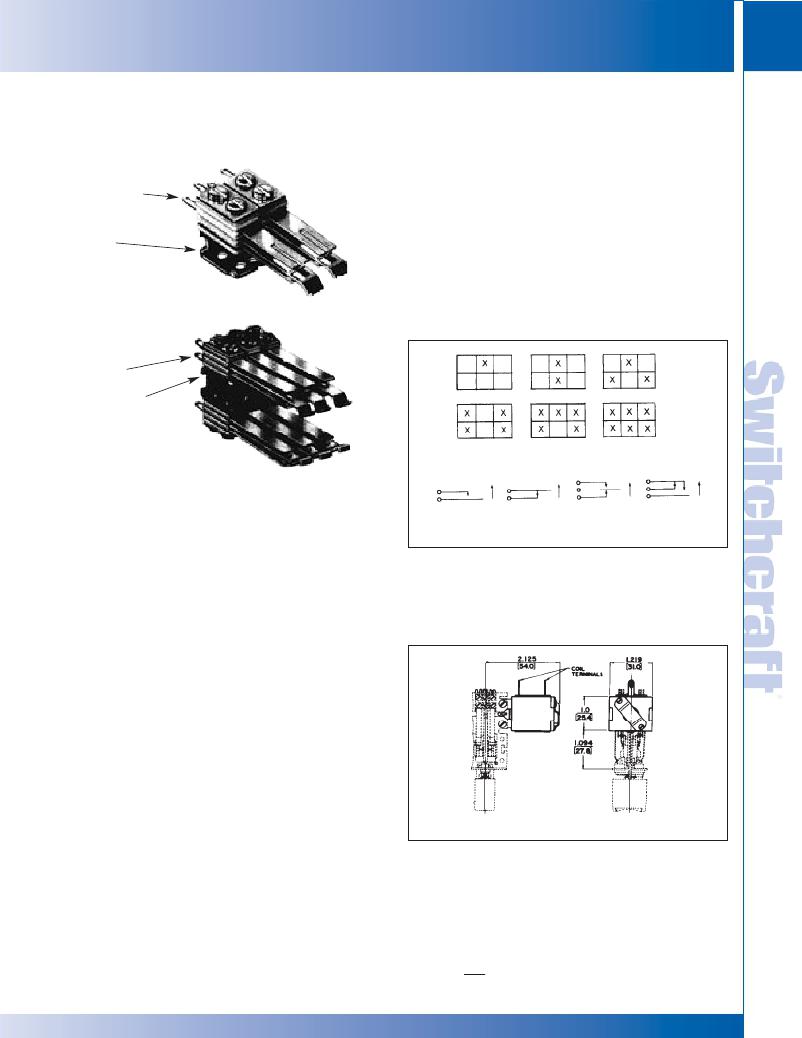

MULTIPLE-STATION SWITCHES (continued)
LITTEL ? MULTI-SWITCH ACCESSORIES
Series 60BG
Bifurcated
Switch Stacks
Special
Mounting
Bracket
HIGH CURRENT “TINI-STACK” SWITCH STACKS
Heavy duty switch stacks Series 60W for use in 120V, AC
power circuits are available with large, fine silver contacts
rated at 5A, non-inductive load. Stack spacer width limits
mounting to one stack/station on each side of frame and
requires special mounting bracket.
For 10 and 15A switching, contact Switchcraft.
POSITIONING SWITCH STACKS
(SERIES 80P, 800P, 80G AND 800G ONLY)
Refer to chart below for proper balancing of the switch stacks
mechanical load at each station, “X” denotes correct positioning
of the stack on the removable switch stack bracket.
Series
80P Stacks
Mounting
Bracket
1
4
2
5
3
6
Top
Bottom
Top
Bottom
Basic Contact Forms
“TINI-STACK” SWITCHES
Many combinations of stack switches are available on special
order. Contact Switchcraft for specifying assistance, including
A
B
C
D
clearances for stack heights.
SERIES 80P - Crossbar welded palladium contacts rated: 2A,
200W maximum, AC non-inductive load. For use where
contacts of a released station will return to normal before
contacts of a newly operated station are actuated.
Not recommended for use on push-lock/push/release function.
SERIES 800P - Same as Series 80P but can be used on
push-lock/push-release function, or on other functions where
contacts of a newly operated station must be actuated before
contacts of a released station return to normal.
SERIES 80G - Same as Series 80P, except includes
cross-bar welded gold alloy contacts rated at 1A, 100W
maximum, AC non-inductive load.
SERIES 800G - Same as Series 80G except for push-
lock/push-release and/or other functions as described for
Series 800P.
BIFURCATED “TINI-STACK” SWITCH STACKS
Double reliability through use of bifurcated switch stacks
featuring bifurcated leaf springs slotted at the contact end and
parallel to the long axis of the leaf spring. Separate crossbar
gold alloy contacts are welded to leaf springs on each side,
doubling the number of contacts on each spring.
SERIES 60BG - Similar to Series 80P, except bifurcated leaf
springs with welded crossbar gold alloy contacts rated at 1A,
100W maximum, AC non-inductive load.
SERIES 600BG - Same as Series 60BG, except for use on
push-lock/push-release function and/or functions as
described under Series 800P.
Other contact forms available on special order
SERIES NJ SOLENOID RELEASE
Solenoid assembly attaches to end of switch frame and
provides electrical release of activated stations. Instructions
and hardware furnished. Other voltages are available on
special order; contact Switchcraft.
TYPICAL MOUNTING
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
